Imola E is a modular, configurable router designed for maximum reliability in industrial and legacy high-interference environments. Integrating advanced routing capabilities over LAN and WAN channels, both wired and wireless, it is the ideal solution for critical applications.
Certified to operate in complex industrial environments, Imola E is particularly suitable for the management and automation of power substations and Smart Grid networks. Thanks to its modular architecture, the device supports continuous evolution, enabling the integration of new functionalities and communication channels directly onto existing systems.
Business continuity is guaranteed by an automatic backup and hot-swappable redundant power supplies, ensuring maximum reliability even in the most mission-critical applications.
Key factors
Strength Icon
Always-On
Stable connections anywhere, with multiple links, transparent backup, and quality of service for uninterrupted business.
Strength Icon
Robust
Designed to be durable and operate long-term, even in industrial and challenging environments.
Strength Icon
Rugged
Ensures reliable operation in industrial and extreme environmental conditions.
Strength Icon
Secure By Design
Built with security in mind from the design stage, ensuring robust and secure solutions.
Strength Icon
Smart Value
Maximizes business value with an excellent performance-to-price ratio.
Strength Icon
Utility Certified
Certified by leading distribution network operators for use in primary and secondary energy cabins.
Technical Specifications

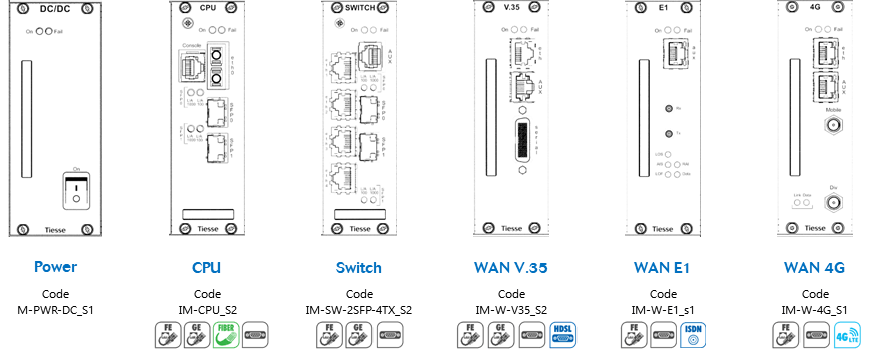

| IMOLA E CARDS | CPU | Switch | WAN V.35 | WAN E1 | WAN 4G | ||
|---|---|---|---|---|---|---|---|
| LAN | GE | 100/1000 Mbps dual purpose port - SFP/RJ45 connectors | 2 | 2 | - | - | - |
| 10/100/1000 base TX port - RJ45 connector | - | - | 1 | - | - | ||
| FE | 100 Base FX ports - MTRJ connectors | 1 | - | - | - | - | |
| 10/100 Mbps base TX ports - RJ45 connectors | - | 4 | 1 | 1 | 1 | ||
| WAN | V.35, 2 M port - ISO DIN 2593 connectors | - | - | 1 | - | - | |
| ISDN | ISDN E1 port WAN serial G.703 interface - microcoax cable | - | - | - | 1 | - | |
| RADIO CELLULAR | GSM GPRS EDGE |
| - | - | - | - | • |
| UMTS HSDPA HSUPA HSPA+ |
| - | - | - | - | • | |
| DC-HSPA+ |
| - | - | - | - | • | |
| WCDMA |
| - | - | - | - | • | |
| 4G |
| - | - | - | - | • | |
| CONSOLE | Asynchronous serial port, up to 115.2 Kbps - RJ45 connector | 1 | 1 | 1 | 1 | 1 | |
Note: the list below is purely indicative; the features depend on the NoS version and update.
Networking
- TCP-UDP IPv4
- IPv6
- IP protocol suite: ICMP, ARP, NTP
- DDR – “Dial on Demand Routing” ISDN (Call Back, CLI identification – Caller and Calling, Channel aggregation)
- PPP Point-to-point Protocol or SLIP for data incapsulating on serial line or dial-up
Layer 2 features
- VLAN: support without limitation of the tags usable on each L2 or L3 interface - interVLAN routing
- L2TPv3 (RFC 3931) static and dynamic
- L2 tunnel for “GOOSE” messages (IEC 61850)
Routing & Multicast, Multi layer Switch, Frame Relay
- Static, Policy-based routing, RIPv1, RIPv2, RIPng
- Tunnel IPv6 in IPv4
- BGP-4, BGP-4+
- OSPF multi area NSSA areas support
- IPv6 routing protocols: RIPng, OSPFv2, OSPFv3
- Multi VRF
- VRRP (Virtual Routing Redundancy Protocol) with IPv4-IPv6 authentication
- IGMP v1-v2-v3, IGMP snooping, IP Multicast routing with PIM sparse-mode PIM Source Specific Multicast (SMM), IP Multicast over
- IEEE 802.1q/802.1p
- Rapid Spanning Tree
- Internetworking: backup trigger and routing based on interfaces, table routing content and ICMP Probing
- “Bridge Loop Prevention” protocols, for both physical and ring topologies
- Configurability of allowed tags on L2 interfaces (trunk)
- Local switching (for Ethernet L2 ports)
- Multi-protocol over Frame Relay RFC 2427, up to 8 active PVC, ITU-T X.36, ANSI T1 617 Annex D
- ITU-T Q.993 Annex A
QoS
- Traffic classification based on source IP, on a combination of source IP, destination IP, protocol (UDP, ICMP, TCP, etc) ports, application recognition, IP Precedence and DSCP
- DiffServ
- Traffic Marking: CoS (Ethernet) or IP Precedence/DSCP on previously classified traffic
- Congestion management
- Guarantee bandwith management
- QoS functionalities applyable to the traffic in the L2TPv3 and IPSec tunnels
Security
- IEEE 802.1x
- NAT/NAPT network and port address translation - IPSec NAT-Traversal
- ACLs
- Stateful and Zone Based Firewall
- SSL and GRE Tunnelling
- Password Encryption
- GRE Tunnelling, GRE over IPSec
- Tunnel IPv6 in IPv4
Services
- DHCP client, DHCP server
- Traceroute
- DNS Client
- Syslog (Local and remote) with timestamping
- Source IP configurable for management purposes
- Running actions triggered by event detections
- Probing of remote destinations
Management and configuration
- SNMP v1, SNMPv2, SNMPv3 for alarm sending and MiB access
- Telnet server
- SSH server
- Radius Support, TACACS+
- Configuration via Command Line Interface (CLI), status and resource statistics displaying (i.e. CPU, interfaces, routing protocols, IPSec)
- Real-time debug and log buffer debug with timestamping
- Session logging
- TNA (Tiesse Network Architecture) suite for auto-provisioning and remote automated management
