Imola LX 0272-IKF

eVDSL and fiber router

Imola LX 0272-IKF is a next-generation router for ultra-broadband networks, supporting eVDSL 35b plus and active and passive fibre connections (GPON). It offers advanced features for traffic optimisation and quality of service, ideal for enterprise infrastructures requiring security, reliability and scalability.

Key factors

Always-On

Stable connections anywhere, with multiple links, transparent backup, and quality of service for uninterrupted business.

Certified

Validated for inclusion in business offering profiles and use within the networks of major telecom operators.

ISP And Telco Ready

Designed to meet the requirements of service providers, telecom operators, carriers, and system integrators.

Power Efficiency

Minimizes energy consumption, reduces environmental impact, and lowers operational costs.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

ZTP

Zero Touch Provisioning facilitates remote management and agile configuration of the installed base.

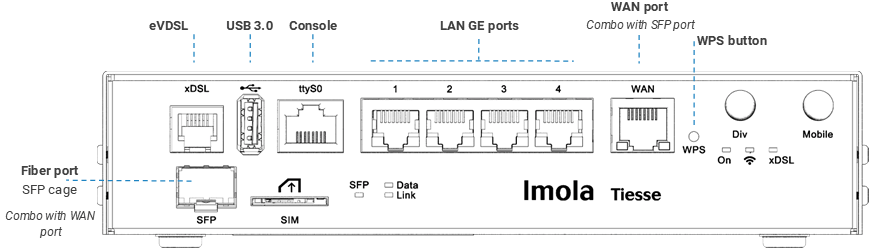

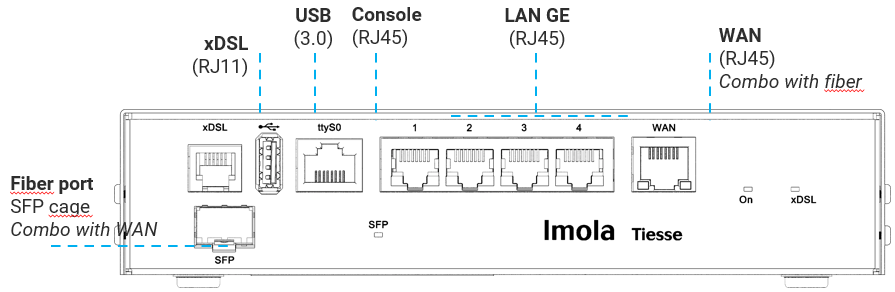

LAN	GE ports	4	Ethernet 10/100/1000 Mbps ports and Switch, RJ-45 auto sensing connector
WAN	GE	1	GE 10/100/1000 Mbps port, RJ45 (label WAN) connector, combo with the SFP port
	Fibra	1	SFP cage port for fiber and GPON connection - combo with WAN GE port (SFP transceiver module not included)
	ADSL 2/2+ VDSL2 eVDSL		1 port with RJ-11 connector, Full rate ADSL2/2+ / VDSL2 ADSL2/2+ Downstream data rate up to 24 Mbps and upstream data rate up to 3.5 Mbps Conformity to Standard G.992.1 annex A, B, C & I, G.992.2 992.2-g.Lite, G.992.3 annex A, B, I, J, M, G.992.4 992.4-g.Lite.bis, G.992.5 annex A, B, C, I, J, M, ANSI T1.413 issue2, ETSI TS 388 VDSL2 Support for all VDSL2 profiles: 8 MHz up to 30 MHz ITU ITU-T G993.2 Complies with the G.Vector standard (ITU ITU-T G.993.5) Compliant with ITU ITU-T G.998.4 G.INP standard Compatible with ADSL2 (backward compatibility) eVDSL2 35MHz ITU ITU-T G993.2 Annex Q profile support (35b or Vplus profiles) with aggregate rates up to 400 Mbps
CONSOLE	RJ45	1	port, RJ45 connector
USB		1	USB 3.0 port

Note: Software functionality depends on the version and upgrade level of the product firmware

Networking

TCP-UDP IPv4, IPv6 support
ICMP

Layer 2 features

LAN Bridging
VLAN on 802.1q LAN interfaces in Access mode, Trunk, native VLAN, and Hybrid mode
Layer 2 Protocol Tunneling (L2PT)
802.1Q-in-802-1Q

Routing & multicast

Static, Policy routing, RIPv1, RIPv2
BGP-4, BGP-4+
OSPFv2
VRF Lite, Routing redistribution, and tagging
VRRP (Virtual Routing Redundancy Protocol) with IPv4-IPv6 authentication
IGMP v1-v2-v3, IGMP snooping, IGMP proxying
Routing Multicast with sparse-mode PIMv2 and PIMv2 dense-mode, MSDP
IEEE 802.1d (Spanning Tree Protocol)

QoS

Traffic classification based on source IP, destination IP, protocols (UDP, ICMP, TCP, etc.) and ports, and combinations, on application recognition, on IP Precedence and DSCP
DiffServ
Layer 2 Remarking CoS
QoS on ATM classes
Shaping with guaranteed allocated bandwidth and redistribution of excess bandwidth
Committed Access Rate and Multicast rate limitation
Traffic prioritization mechanisms, definition of an arbitrary number of priority classes
IEEE 802.3ad link aggregation

Security

NAT/PAT
ACLs, Stateful Firewall
IP Filtering
SSL Tunnelling
L2TP
PPTP
GRE Tunnelling
VPN with IPSEC 3 DES Encryption

Services

DHCP client, DHCP server with antispoofing functions
Intelligent DNS proxy, local and remote
Traceroute
NTP Client and Server support
Easy VPN

Management and configuration

SNMP v1, SNMPv2, SNMPv3
Telnet server with multiple concurrent sessions
SSH server with multiple concurrent sessions (SSHv2)
IP SLA with support for: One Way Delay, Round Trip Delay, Jitter, Packet Loss
SAA (Service Assurance Agent)
Fault management Syslog /Trap
PAP/CHAP user authentication, RADIUS, TACACS+
Tracking for backup management, commands, and event scheduling
Software update via TFTP, FTP, HTTP, HTTPS, SCP
Configuration via command Line Interface (CLI), Text/Menu oriented, and Telnet
TNA (Tiesse Network Architecture) suite for auto-provisioning and automated remote management
Ability to maintain an arbitrary number of configurations

Declaration of conformity
