Imola LX 0272-IK2W

eVDSL ultra broadband router – dual Wi-Fi

Imola LX 0272-IK2W is an advanced router with eVDSL 35b plus connectivity and Gigabit Ethernet WAN, designed specifically for business applications requiring high security standards and optimal network performance. Thanks to dual Wi-Fi, the coverage and speed of wireless connections is also optimal. Its compact size makes it easy to install in any environment, while its low-power design helps reduce operating costs.
With Imola LX 0272-IK2W, businesses can ensure reliable and secure connectivity, effectively supporting their communication and data management needs.

Key factors

Certified

Validated for inclusion in business offering profiles and use within the networks of major telecom operators.

ISP And Telco Ready

Designed to meet the requirements of service providers, telecom operators, carriers, and system integrators.

Power Efficiency

Minimizes energy consumption, reduces environmental impact, and lowers operational costs.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

ZTP

Zero Touch Provisioning facilitates remote management and agile configuration of the installed base.

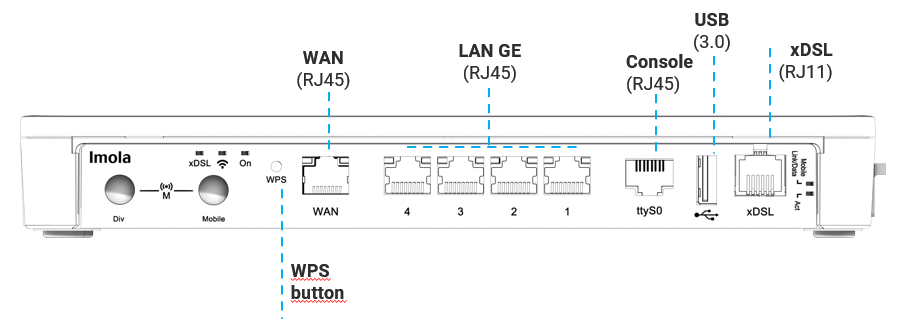

LAN	GE ports	4	10/100/1000 Mbps Ethernet ports switch, RJ45 auto sensing connectors
LAN	Simultaneous dual Wi-Fi	1	802.11 b/g/n port (2.4 GHz) 2x2 port, up to 300 Mbps 802.11 ac (5.4 Ghz) port, up to 1300 Mbps
WAN	GE-WAN	1	10/100/1000 Mbps port, RJ45 connector (label WAN)
WAN	ADSL 2/2+ VDSL2 eVDSL	1	RJ11 port, Full rate ADSL2/2+ / VDSL2 ADSL2/2+ Downstream data rate up to 24 Mbps — Upstream data rate up to 3.5 Mbp Standards-compliant G.992.1 annex A,B,C&I, G.992.2-g.Lite, G.992.3 annex A, B, I, J, M, G.992.4-g.Lite.bis, G.992.5 annex A, B, C, I, J, M, ANSI T1.413 issue2, ETSI TS 388 ADSL-over-ISDN, ITU T-I361, ITU T-I.363.5, ITU T-I.432, ITU T-I610, ITU T-I731 VDSL2 Support for all VDSL2 profiles: 8 MHz to 30 MHz ITU-T G993.2 G.Vector standard-compliant (ITU-T G.993.5) ITU-T G.998.4 G.INP standard-compliant ADSL2 compatible (backward compatibility) eVDSL2 Support 35 MHz ITU-T G993.2 Annex Q (35b or Vplus) profile with aggregate rates up to 400 Mbps
CONSOLE	Console ports	1	RJ45 connector
USB	USB ports	1	USB 3.0 port

Note: the list below is purely indicative; the features depend on the NoS version and update.

NETWORKING

TCP-UDP IPv4
IPv6
PVC Bonding

LAYER 2 features

LAN Bridging
VLAN support on LAN interface 802.1q in Access mode, Trunk, native VLAN and Hybrid mode
Layer 2 Protocol Tunneling (L2PT)

ROUTING & MULTICAST

Static, Policy routing, RIPv1, RIPv2
BGP-4, BGP-4+
OSPFv2
VRF Lite, Routing redistribution e tagging
VRRP (Virtual Routing Redundancy Protocol) with IPv4-IPv6 authentication
IGMP v1-v2-v3, IGMP snooping, IGMP proxying
Multicast routing with PIMv2 sparse-mode and PIMv2 dense-mode, MSDP
IEEE 802.1d (Spanning Tree Protocol)

QoS

Traffic classification based upon source IP, based on a combination of source IP, destination IP, protocol (UDP, ICMP, TCP, etc), upon DSCP/IP precedence, ToS or Port
DiffServ
CoS on VLAN
QoS on classi ATM
Shaping with guaranteed allocated bandwidth and redistribution of bandwidth excess
Committed Access Rate e Multicast rate Limit
Mechanisms of traffic prioritization, ability to define an arbitrary number of priority classes
Link aggregation IEEE 802.3ad

SECURITY

NAT/PAT
ACLs, Stateful Firewall
SSL Tunnelling
L2TP
GRE Tunnelling with keep alive and key sequence numbering (radio mobile network optimization)
VPN con IPSEC/ESP o IPSEC/AH IKEv1/IKEv2
3 DES Encryption

SERVICES

DHCP client, DHCP server with antispoofing functions, DHCP Layer Discovery Protocol IEEE 802.1ab, DHCP relay
Intelligent DNS Proxy, both local and remote
Traceroute
NTP Client and Server support
Easy VPN
DDns

MANAGEMENT and CONFIGURATION

SNMP v1, SNMPv2, SNMPv3
Telnet server with multiple simultaneous sessions
SSH server with multiple simultaneous sessions (SSHv2)
Netflow
IP SLA support for: One Way Delay, Round Trip Delay, Jitter, Packet Loss
SAA (Service Assurance Agent)
Fault management Syslog /Trap
Radius Support, TACACS+
Tracking for backup management, commands and events scheduled
Aggiornamento software via TFTP, FTP, HTTP, HTTPS, SCP
Configuration via command Line Interface (CLI), Text/Menu oriented and Telnet
TNA (Tiesse Network Architecture) suite per auto-provisioning e gestione automatizzata remota
Possibility to keep an arbitrary number of configuration
