Elba 100

Managed switch – 10 GE LAN and Fiber

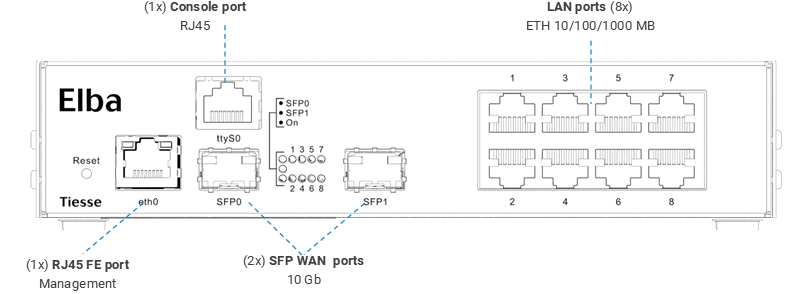

Elba 100 is a fixed-configuration managed Ethernet switch, equipped with Ethernet and fibre ports supporting speeds of up to 10 Gbps.

It allows flexible configuration of VLANs and Layer 2 protocols, offering excellent network traffic management.

Thanks to its compact size, Elba 100 can be easily installed in any environment, making it ideal for confined spaces and applications in different infrastructures.

Key factors

ISP And Telco Ready

Designed to meet the requirements of service providers, telecom operators, carriers, and system integrators.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

ZTP

Zero Touch Provisioning facilitates remote management and agile configuration of the installed base.

Note: The features may depend on the version and the update level of the product's firmware.

Switching Layer 2

Spanning tree protocol
- Support of Spanning Tree Protocol 802.1d standard
- RSTP (Rapid Spanning Tree Protocol), MSTP (Multiple Spanning Tree Protocol)
LLDP - Support of Link Layer Discovery Protocol IEEE 802.1ab
VLAN
- VLAN tag 802.1Q, VLAN based on MAC address
- VLAN for management, VLAN Q-in-Q
- VLAN for voice traffic (assignment to a specific VLAN with QoS management)
Port aggregation - Support of LACP (Link Aggregation Control Protocol) IEEE 802.3ad
Unidirectional Link Detection - Support of UDLD
IGMP - Support of Internet Group Management Protocol to limit multicast traffic

QoS

Class of Service (CoS)
- Classification based on port, over VLAN priority VLAN (802.1p tag)
- Differentiated Services (DiffServ)
- Remarking CoS
WRR - Support Weighted Round Robin
Levels - 8 hardware queues for each priority level
Traffic/speed
- Data flow control and restriction based on VLAN and port
- Storm control

Administration and Management
