Levanto 520-D

IoT/M2M device – 4G – for industrial application

Levanto 520-D is the variant of the Levanto 520 that supports dual SIM: it provides connectivity between remote devices and centralised control systems via a 4G network, ensuring continuity of service and connections.
It is compact, robust and designed for industrial use.
Levanto 520-D is particularly suitable for business applications in the industrial and energy sectors, where security and service continuity are paramount, as well as reliability and durability for installations in disturbed environments.
Levanto 520-D is available in several variants to cover the frequency band of different regions and countries.

Key factors

Preconfigured

Factory pre-configured and ready to use, reducing installation time, errors, and enabling immediate deployment.

Robust

Designed to be durable and operate long-term, even in industrial and challenging environments.

Rugged

Ensures reliable operation in industrial and extreme environmental conditions.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

Utility Certified

Certified by leading distribution network operators for use in primary and secondary energy cabins.

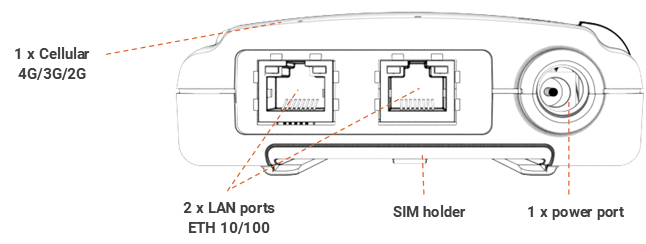

LAN	FE	2	10/100 Mbps, RJ45 connectors
RADIO CELLULAR	Frequency bands		EU REGION LTE FDD : B1/B3/B7/B8/B20/B28 WCDMA : B1/B8 GSM : B3/B8 LATAM REGION LTE FDD : B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE TDD : B40 WCDMA : B1/B2/B4/B5/B8 GSM : B2/B3/B5/B8
	LTE		EU REGION Support up to Cat. 4 LTE FDD: 150 Mbps (DL) - max 50 Mbps (UL) LATAM REGION Support up to Cat. 4 LTE FDD: 150 Mbps (DL) - max 50 Mbps (UL)
	UMTS		EU REGION DC-HSDPA: max 42 Mbps (DL) HSUPA: max 5.76 Mbps (UL) WCDMA: max 384 Kbps (DL) - max 384 Kbps (UL) LATAM REGION DC-HSDPA+: max 21.1 Mbps (DL) - max 5.76 (UL) WCDMA: max 384 Kbps (DL) - max 384 Kbps (UL)
	GSM/EDGE		EU REGION EDGE: max 296 Kbps (DL) - max 236.8 Kbps (UL) GPRS: max 107 Kbps (DL) - max 85.6 Kbps (UL) LATAM REGION EDGE Support of multi slot class 12, GMSK and 8-PSK for different modulation and coding scheme. Support of uplink coding scheme MCS 1-9. Max 296 Kbps (DL) - max 236.8 Kbps (UL) GPRS: Support of multi slot class 12 coding scheme: CS 1-4 Max 85.6 Kbps (DL) - max 85.6 Kbps (UL)
SIM SLOTS		2	Note: the number of enabled slots depends on the model Levanto 520: 1 slot enabled Levanto 520: 2 slot enabled

Note: The features may depend on the version and the update level of the product's firmware.

NETWORKING

IPv4 (RFC 791), IPv6
TCP (RFC 793)
UDP (RFC 768)
ICMP
ARP
802.1q (VLAN)

SERVICES

DHCP client, DHCP server
HTTPS
Ping, Traceroute
NTP Client and Server support
DNS
Possibility to disable network services when not in use
Timestamp service

ROUTING

Static routing
Dynamic routing protocols RIPv1, RIPv2, BGPv4

MULTICAST

No specific details provided

SECURITY

Non-interruptible boot
NAT/PAT
PAP, CHAP
IPSEC, GRE
ACLs, Stateful Firewall
Port forwarding
Services enable/disable
Multilevel security access
Password encryption

MANAGEMENT AND CONFIGURATION

SNMPv2, SNMPv3
Telnet client and server
SSHv2
sFTP client
Syslog server
Event logging
Different levels of logging
Radius Support
TACACS local authentication
Configuration via command Line Interface (CLI)
Possibility to implement custom commands
Remote scripting for firmware upgrade
