Levanto 510

IoT/M2M device – 4G – for industrial application

Levanto 510 provides connectivity between remote devices and centralised control systems via 4G network. Using a cellular radio connection it ensures reachability and data exchange between peripheral assets and central control and monitoring platforms.

The Levanto 510 is particularly suitable for business applications in the industrial and energy sectors, where security and service continuity are paramount, as well as reliability and durability for installations in disturbed environments.

Key factors

Preconfigured

Factory pre-configured and ready to use, reducing installation time, errors, and enabling immediate deployment.

Robust

Designed to be durable and operate long-term, even in industrial and challenging environments.

Rugged

Ensures reliable operation in industrial and extreme environmental conditions.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

Utility Certified

Certified by leading distribution network operators for use in primary and secondary energy cabins.

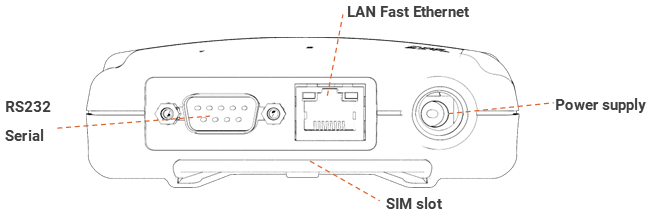

LAN		1	10/100 Mbps port, RJ45 connector (not used on LEVANTO 510 TC and LEVANTO 510 TL models)
SERIAL		1	DB Asynch port up to 115.2 Kbps - RS232 connector It allows use as COM Modem (via AT command)
RADIO CELLULAR	Bandwidth		LTE FDD: B1/B3/B7/B8/B20/B28 WCDMA: B1/B8 GSM: B3/B8
	LTE		Support up to Cat. 4 LTE FDD: 150 Mbps (DL) - Max 50 Mbps (UL)
	UMTS		DC-HSDPA: max 42 Mbps (DL) HSUPA: max 5.76 Mbps (UL) WCDMA: max 384 Kbps (DL) - max 384 Kbps (UL)
	GSM		EDGE: max 296 Kbps (DL) - max 236.8 Kbps (UL) GPRS: max 107 Kbps (DL) - max 85.6 Kbps (UL)

Note: The features may depend on the version and the update level of the product's firmware.

NETWORKING

IPv4 (RFC 791), IPv6
TCP (RFC 793)
UDP (RFC 768)
ICMP
ARP
802.1q (VLAN)

SERVICES

DHCP client, DHCP server
HTTPS
Ping, Traceroute
NTP Client and Server support
DNS
Possibility to disable network services when not in use
Timestamp service

ROUTING

Static routing
Dynamic routing protocols RIPv1, RIPv2, BGPv4

MULTICAST

Support not explicitly listed

SECURITY

Non-interruptible boot
NAT/PAT
PAP, CHAP
IPSEC, GRE
ACLs, Stateful Firewall
Port forwarding
Services enable/disable
Multilevel security access
Password encryption

MANAGEMENT AND CONFIGURATION

SNMPv2, SNMPv3
Telnet client and server
SSHv2
sFTP client
Syslog server
Event logging
Different levels of logging
Radius Support
TACACS local authentication
Configuration via command Line Interface (CLI)
Possibility to implement custom commands
Remote scripting for firmware upgrade
